Piezo & Drill Combination Console
Minimally invasive, maximally impressive
The piezo technology of the Piezomed Pro enables precision bone cutting. In combination with the Amadeo surgical motor, the Piezo & Drill Combination Console offers exceptional control and minimizes trauma during procedures.
Modularity for optimum flexibility

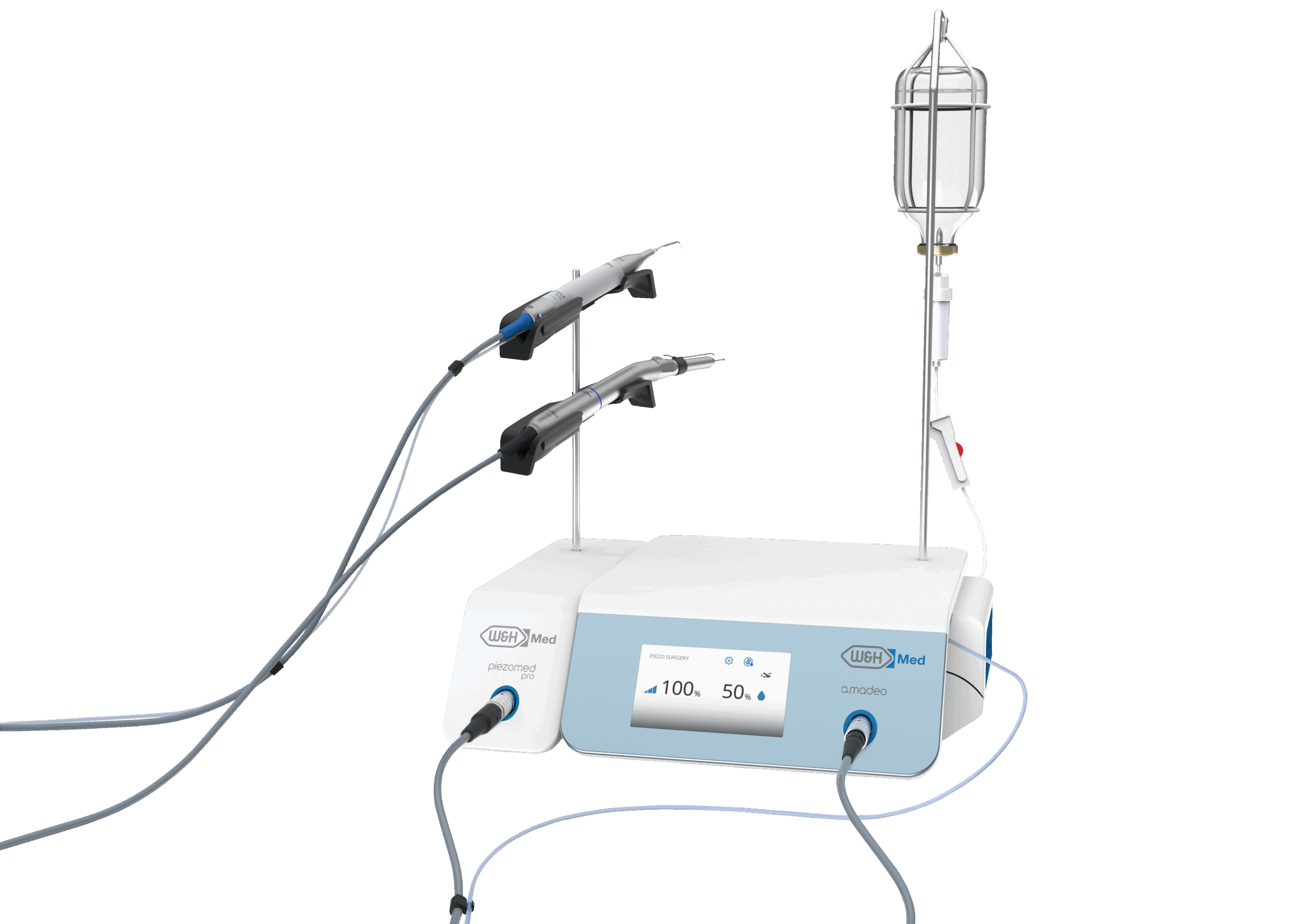

The Piezo & Drill Combination Console, consisting of Piezomed Pro and Amadeo, provides optimum flexibility for a wide variety of treatments. This unique 2-in-1 solution combines innovative piezo technology with a powerful surgical motor — a huge relief for patients: less swelling and faster healing.
The ONLY FDA cleared Medical Piezo/Drill Combination Device in the USA!
Areas of application
The Piezo & Drill Combination Console is suitable for use in ENT surgery, maxillofacial surgery, hand and foot surgery as well as plastic and reconstructive surgery. Thanks to the innovative 2-in-1 solution, which combines piezo technology with a powerful surgical motor, the Piezo & Drill Combination Console offers maximum precision and versatility for a wide range of surgical requirements.
Piezomed Pro
High-efficiency piezosurgery handpiece engineered for precise
osteotomies and delicate bone sculpting.
View Technical Data
| Type: | Piezomed Pro control unit M-PM100 |
|---|---|
| Supply voltage: | 100 – 240 V |
| Operating voltage: | 30 – 32 V DC |
| Frequency: | 50 – 60 Hz |
| Maximum output (ultrasonic): | 24 W |
| Operating frequency: | 22 – 35 kHz |
| Coolant flow rate at 100 %: | minimum 90 ml/min |
| Operating mode: | S3 (60 s ON / 30 s OFF) |
| Dimensions (W × H × D): | 3.5″ × 5.5″ × 11.2″ (90 × 140 × 285 mm) |
| Weight: | 1.4 lbs (635 g) |
| Length of handpiece cable: | 11.5′ (3.5 m) |
| Foot control: | S-N2 / S-NW |
View Technical Data
| Type: | Amadeo M-UK1023 / 1015 / 1010 |
|---|---|
| Mains voltage: | 230 V | 120 V | 100 V |
| Rated current: | 0.3 – 0.8 A | 0.3 – 1.6 A | 0.3 – 1.4 A |
| Frequency: | 50 / 60 Hz |
| Mains fuse (2 pcs): | 250 V – T1,6 AH |
| Maximum power consumption: | 170 VA / 170 VA / 140 VA |
| Maximum power output: | 80 W |
| Max. torque at the motor: | 6.2 N cm |
| Motor speed range: | 200 – 40 000 min⁻¹ |
| Coolant flow rate at 100 %: | at least 90 ml/min |
| Dimensions (W × H × D): | 10.3″ × 4.0″ × 11.5″ (262 × 100 × 291 mm) |
| Weight: | 7.7 lbs (3.5 kg) |
| Foot control: | S-N2 / S-NW |
| Straight and contra-angle handpieces: | S-9 / S-10 / S-11 / S-12 / S-15 / WS-75 / WS-75 LG |
| Warranty: | 12 months |
| Warranty (straight & contra-angle handpieces): | 12 months |
| Class: | Class II medical electrical equipment |
| Type: | Handpiece with cable M-PH350 |
|---|---|
| Maximum power consumption: | 24 W |
| Frequency (ultrasonic): | 22 – 35 kHz |
| Frequency: | 50 – 60 Hz |
| Coolant flow rate at 100 %: | minimum 90 ml/min |
| Operating mode: | S3 (60 s ON / 30 s OFF) |
|
Class II medical electrical equipment 2017/745 Medical Device Regulation (MDR) IEC 60601-1 Safety requirements IEC 60601-1-2 Electromagnetic compatibility | |

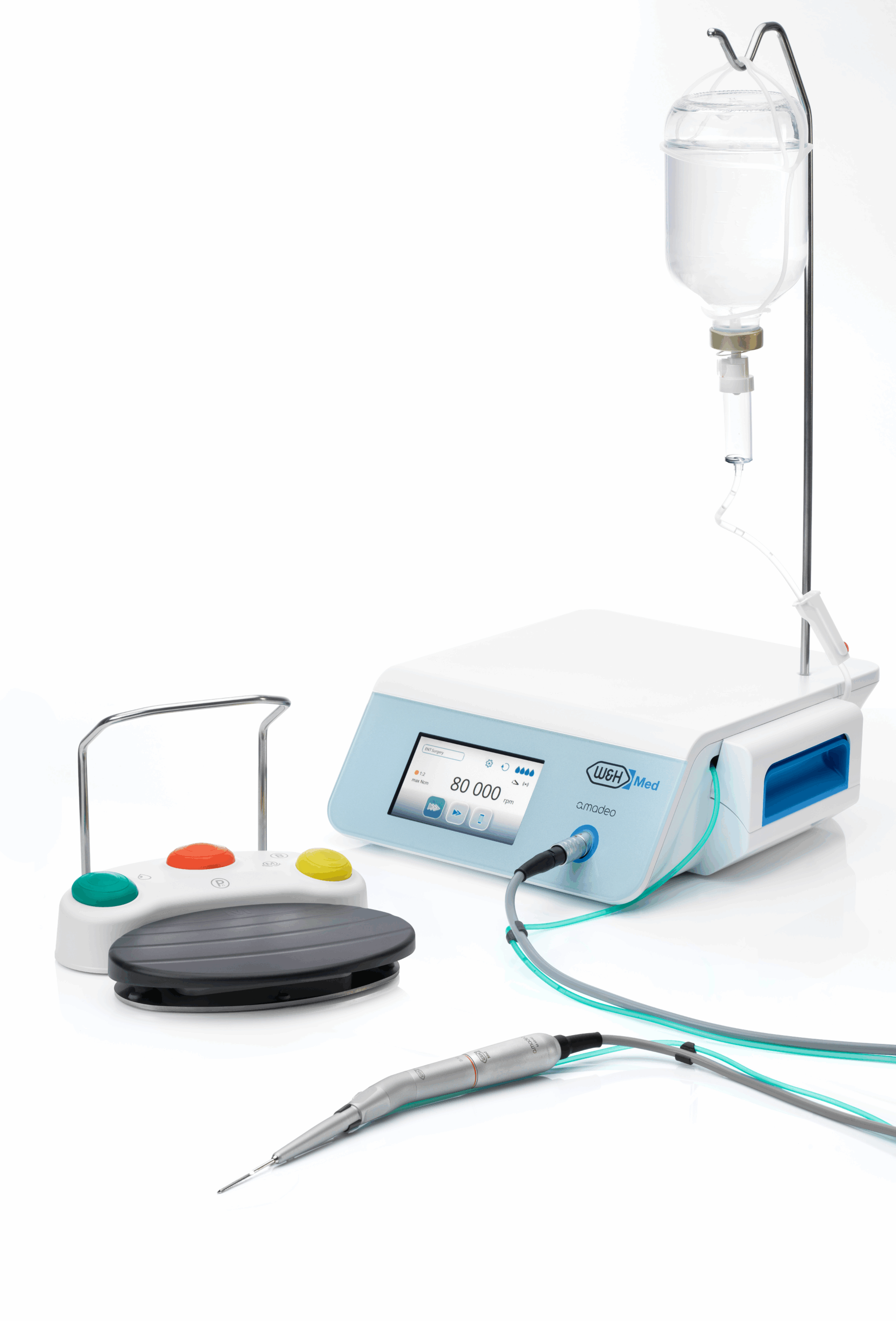

Amadeo
Compact surgical motor system designed for reliable performance,
torque precision, and versatile handpiece compatibility.

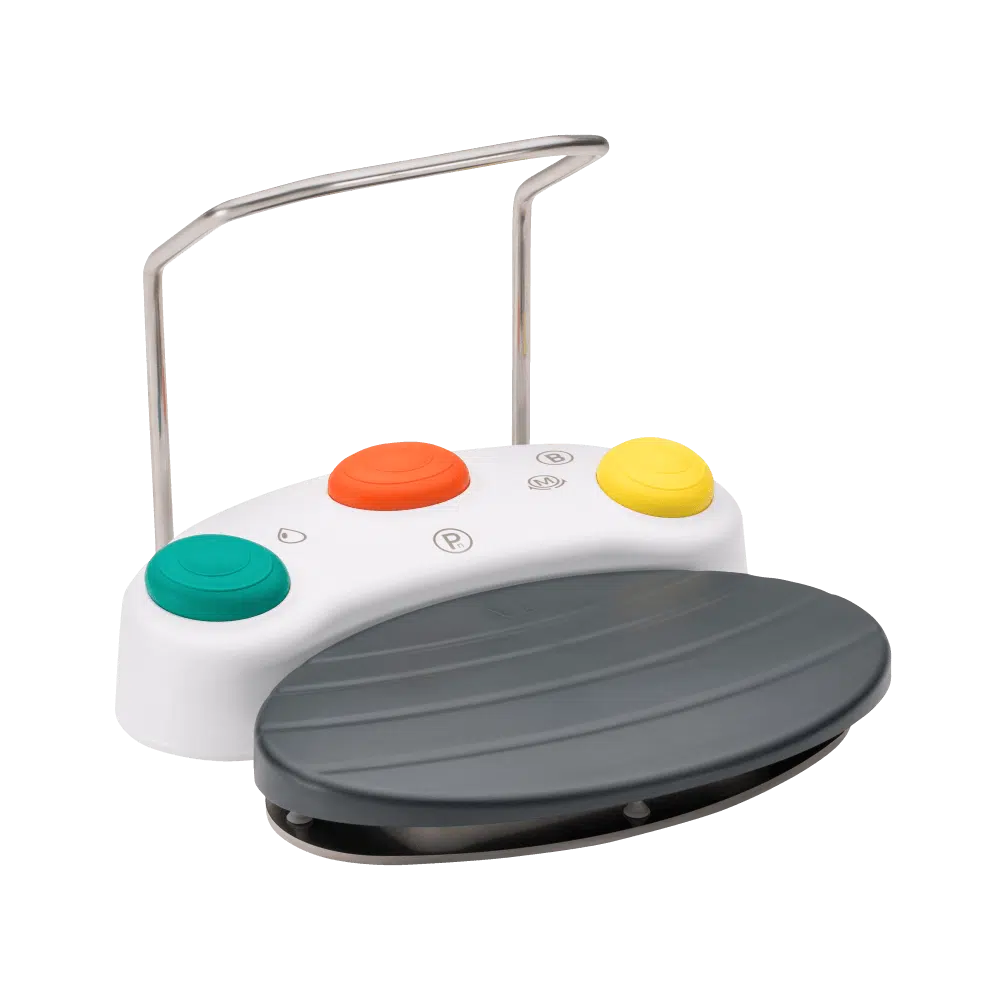

Foot control – maximum freedom of movement
Single pedal solution for seamless switching between piezo and
drill with one irrigation system.
Videos & Tutorials
Educational clips featuring the Piezo & Drill Combination Console in action.

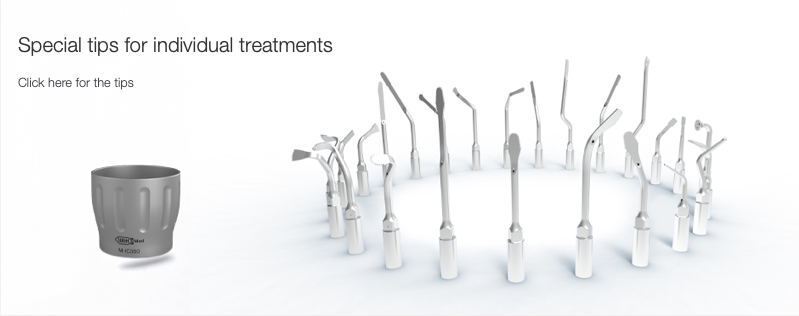

Tip Options: Full YouTube Playlist
