Kuppersmith Thyroidectomy Retractor

SKU: 110-712 Category: Tags: , ,

Description

Call for more Info and Pricing!

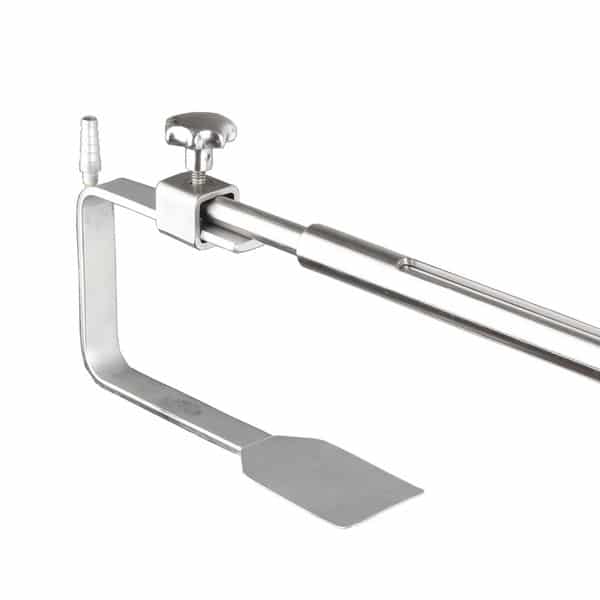

Kuppersmith Thyroidectomy Retractor System includes an OR table mounted Post with Clamp and a Horizontal Extension Bar with Coupler.
This allows for an easy and secure mounting of various retractor blades, with or without suction. Custom sizes are available upon request.
Kuppersmith Retractor features easy to use, ergonomic adjustment knobs that allow to move and secure retractor arm at different lengths, heights, and angles.
Big Round Knob around the threaded post allows for easy height adjustment.

Please see below for specifications and retractor blade options:

Specifications:
Horizontal Reach: 14″ to 22″  (35 cm to 55 cm)
Height Range: 0″ to 22″  (0 cm to 55 cm)
Angle Range: 0 deg (horizontal) to 35 degrees (upward)

Kuppersmith Retractor System:
110-712 Kuppersmith Thyroidectomy Table Post & Clamp
110-714 Kuppersmith Horizontal Extension Bar & Coupler

Standard Kuppersmith Retractor Blades:
200-254 AK Thyroidectomy Retractor, (SHORT) 60 mm W x 19.5 cm L
200-255 AK Thyroidectomy Retractor, (SHORT) 50 mm W x 19.5 cm L
200-256 AK Thyroidectomy Retractor, (SHORT) 70 mm W x 19.5 cm L
200-257 AK Thyroidectomy Retractor, (LONG) 50 mm W x 22.5 cm L
200-259 AK Thyroidectomy Retractor, (LONG) 60 mm W x 22.5 cm L
200-263 AK Thyroidectomy Retractor, (LONG) 70 mm W x 22.5 cm L
200-265 AK Thyroidectomy Blade 35 mm x 125 mm
200-266 AK Thyroidectomy Blade 35 mm x 110 mm with Suction

Custom Blades available upon request.

Sterilization:
200-251 Kuppersmith Retractor Sterilization Container, 80 cm x 24 cm x 7.6 cm
